detailed description

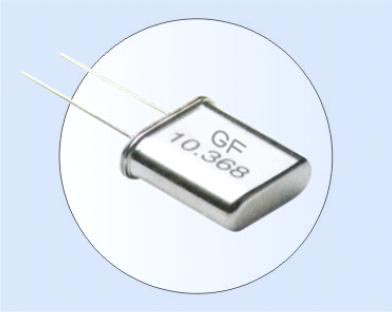

model | HC-49U | |||
package | HC-49U | |||
Frequency range（MHz） | 1.8432~40 | 23~100 | 60~150 | 120~200 |
Mode | AT fundamental frequency | AT3rd overtone | AT5th overtone | AT7 overtone |
Resonance Resistance（Ω） | 20~600 | 40~60 | <80 | <100 |
frequency tolerance（×10-6） | 10~50（25℃） | |||
Static capacitance (pF) | 9pF max | |||
Load Capacitance (pF) | 6~50Or in series | |||
insulation resistance（MΩ） | >500/DC100V | |||
Drive level（mW） | 0.01~1.0 | |||
age（×10-6/year） | ±2~±5 | |||
Operating temperature range and temperature frequency difference | ||||
temperature range（℃） | Temperature frequency difference（×10-6） | |||
±3 ±5 ±10 ±15 ±20 ±30 ±50 | ||||
———————————————————————— | ||||
-10~60 | ———————————————————————— | |||
-20~70 | ———————————————————— | |||
-40~80 | ————————————— | |||
